ROCKET STOVES

A Rocket Mass Heater is a type of a masonry heater that has been designed specifically for the those who want to do it themselves, and often with many reused materials, making it more affordable and accessible.

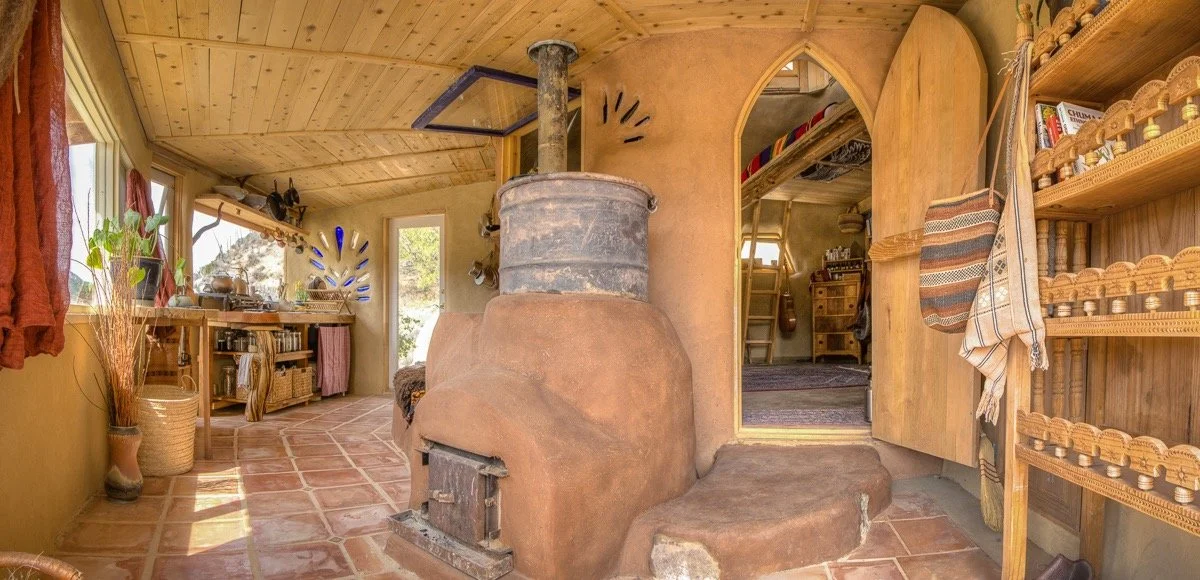

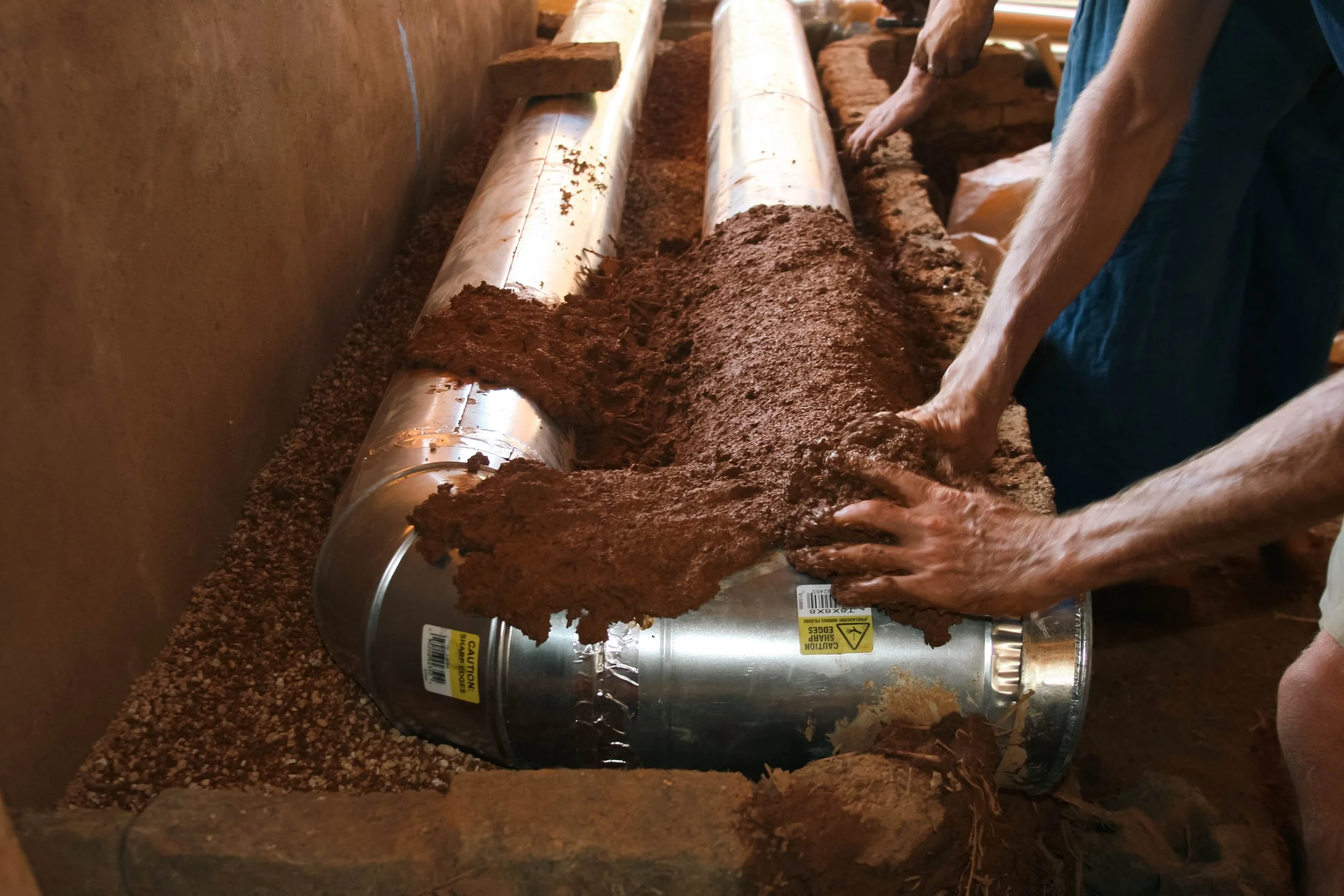

A Rocket Mass Heater is a type of wood burning stove that utilizes masonry heater principles to create efficient, clean combustion. Due to the stoves unique design it has a very strong draw, and therefor the flue gasses can be sent horizontal, through benches or walls, and the heat is then transferred into ‘mass’, the mass then continues to release heat long after the fire is out. Rocket Stoves can also be used to heat homes, heat water, cook on, or even fire kilns. They can be built so they burn very clean, producing almost no smoke.

RMH commons copy.jpg
Mini Rocket stove for boiling water

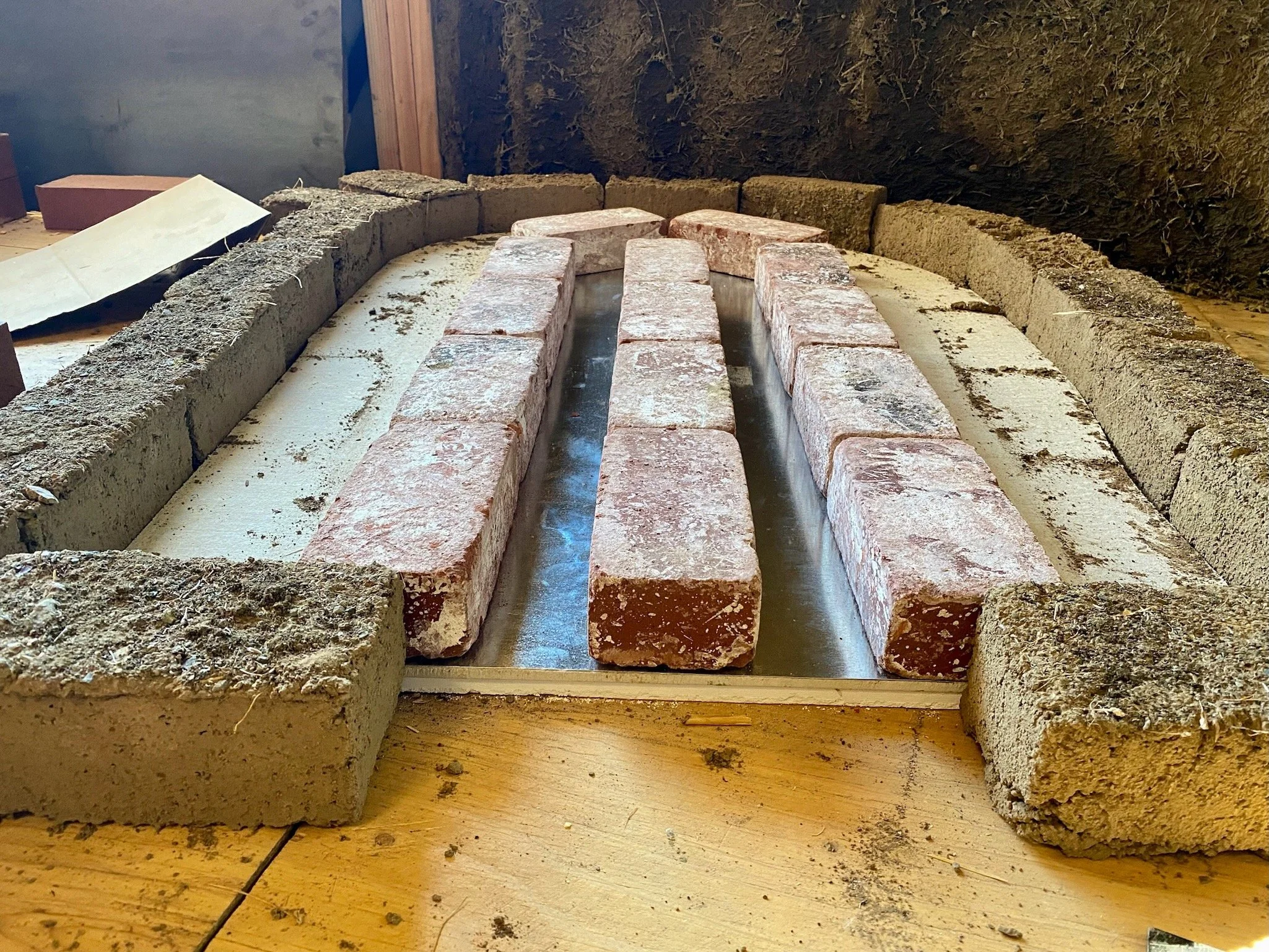

Creating an air space between burn chamber and wooden floor
Insulation under the fire box of Rocket Mass heater built on a wooden floor

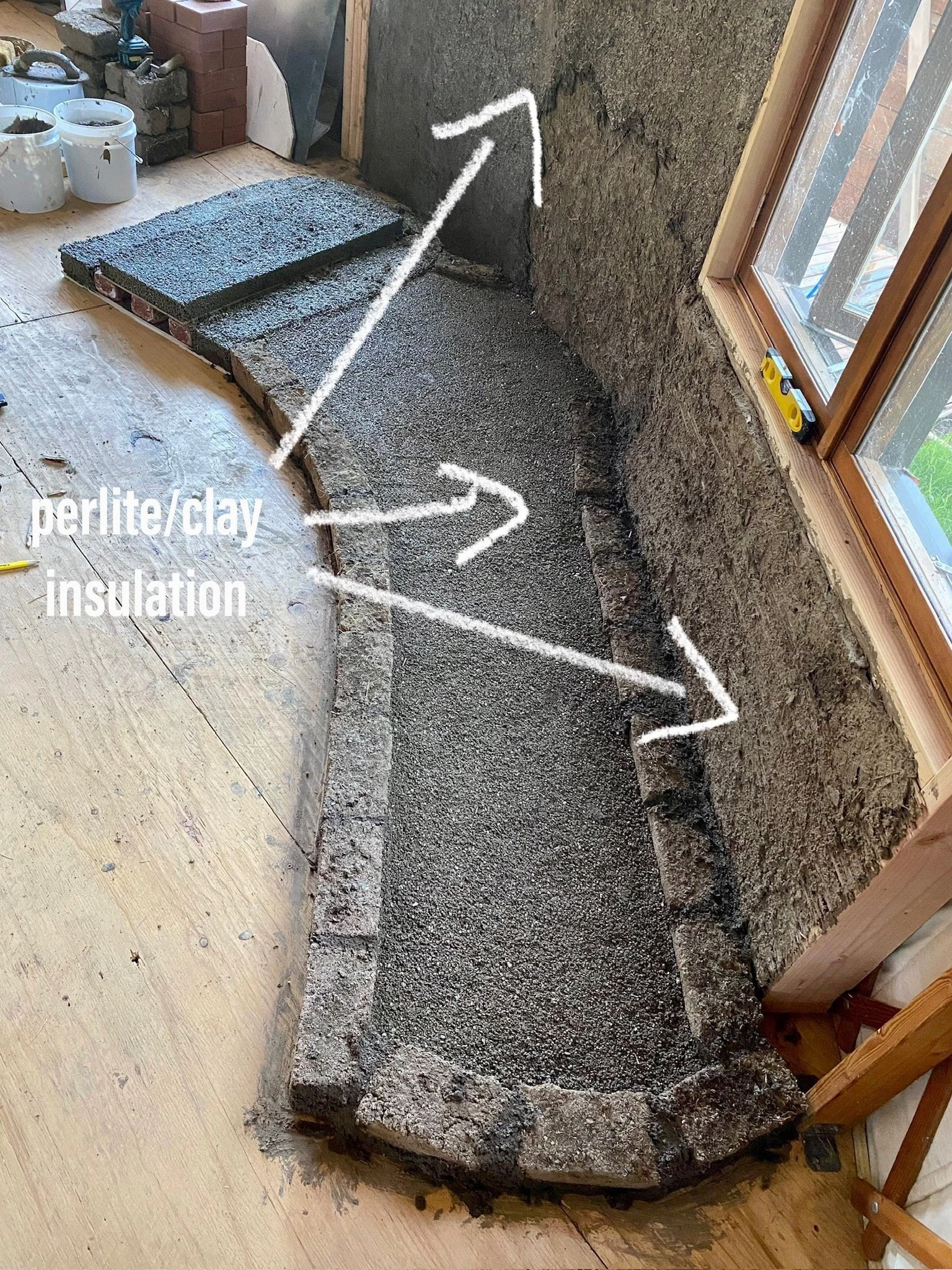

We also added perlite clay insulation behind the heater, so we dont loose heat to the outside.

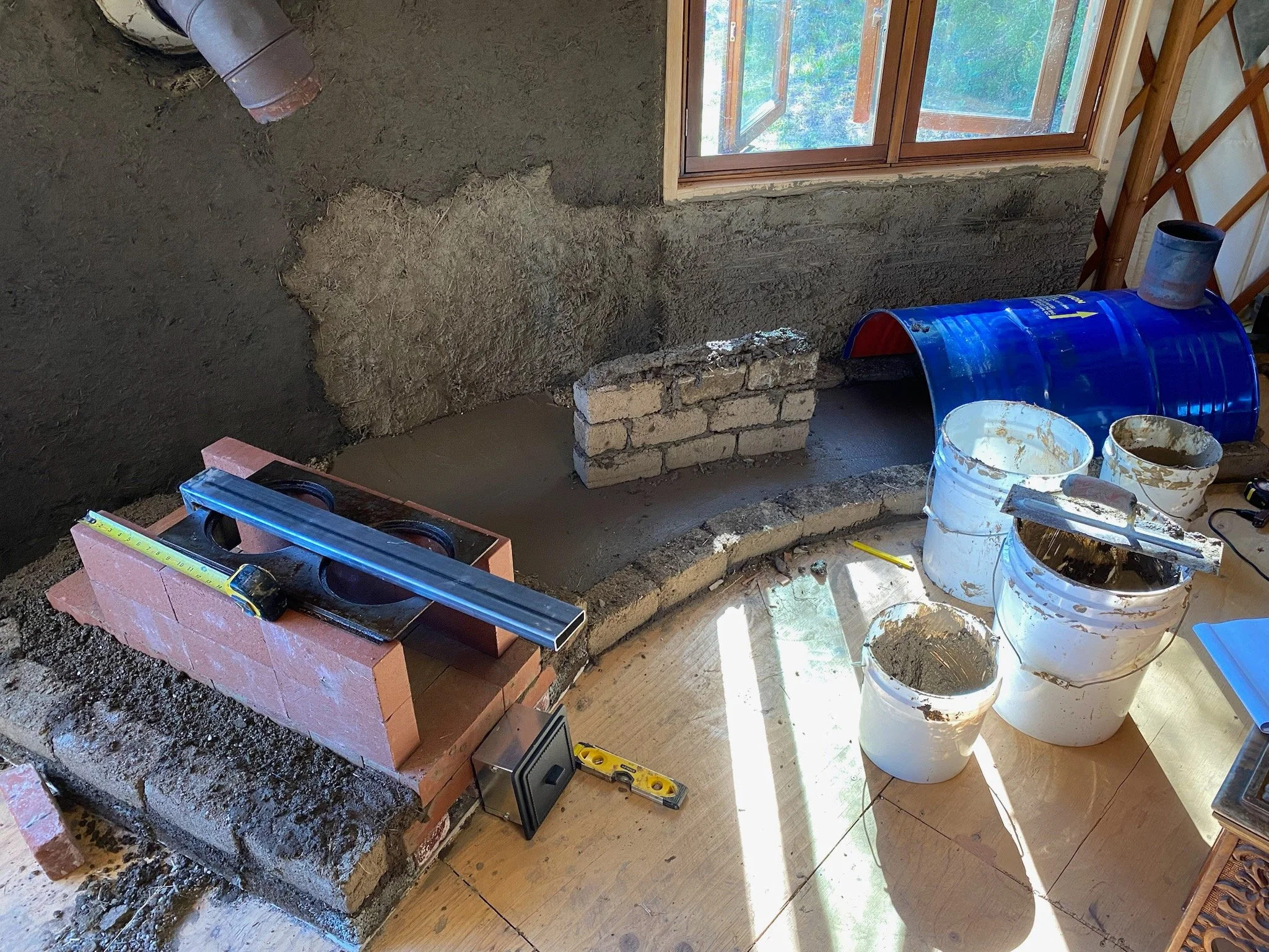

This image shows the beginning of the fire box, and the inside of what will become the bench. Barrel creates a 'bell'.
The heat riser and the inside of what will become the bypass chamber.

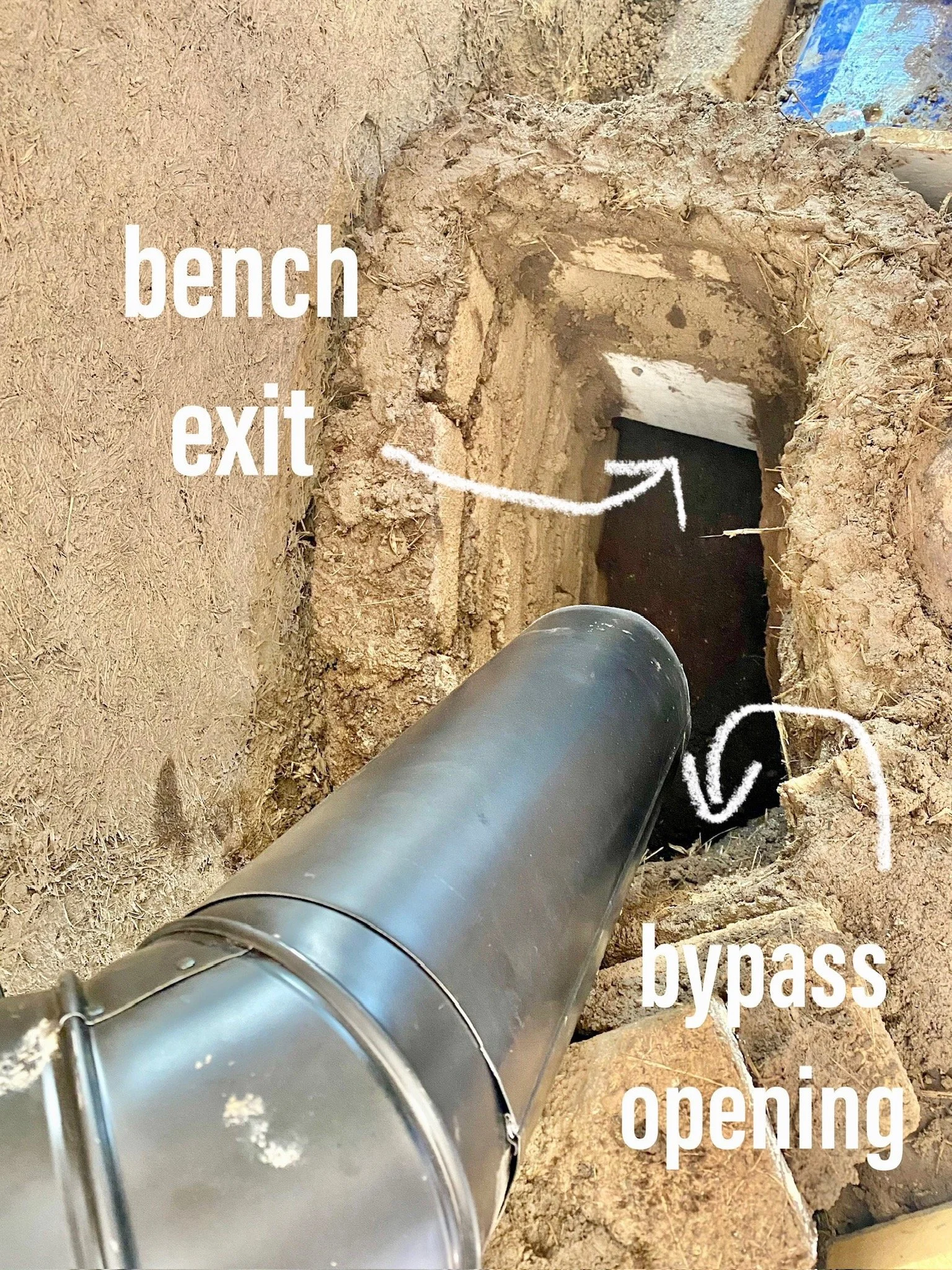

One of the key factors to success is having a bypass option, so when you are first starting your fire, and system has not yet heated up, your flue gasses are going directly out, and not being pushed through the bench. Once the system heats up, and y

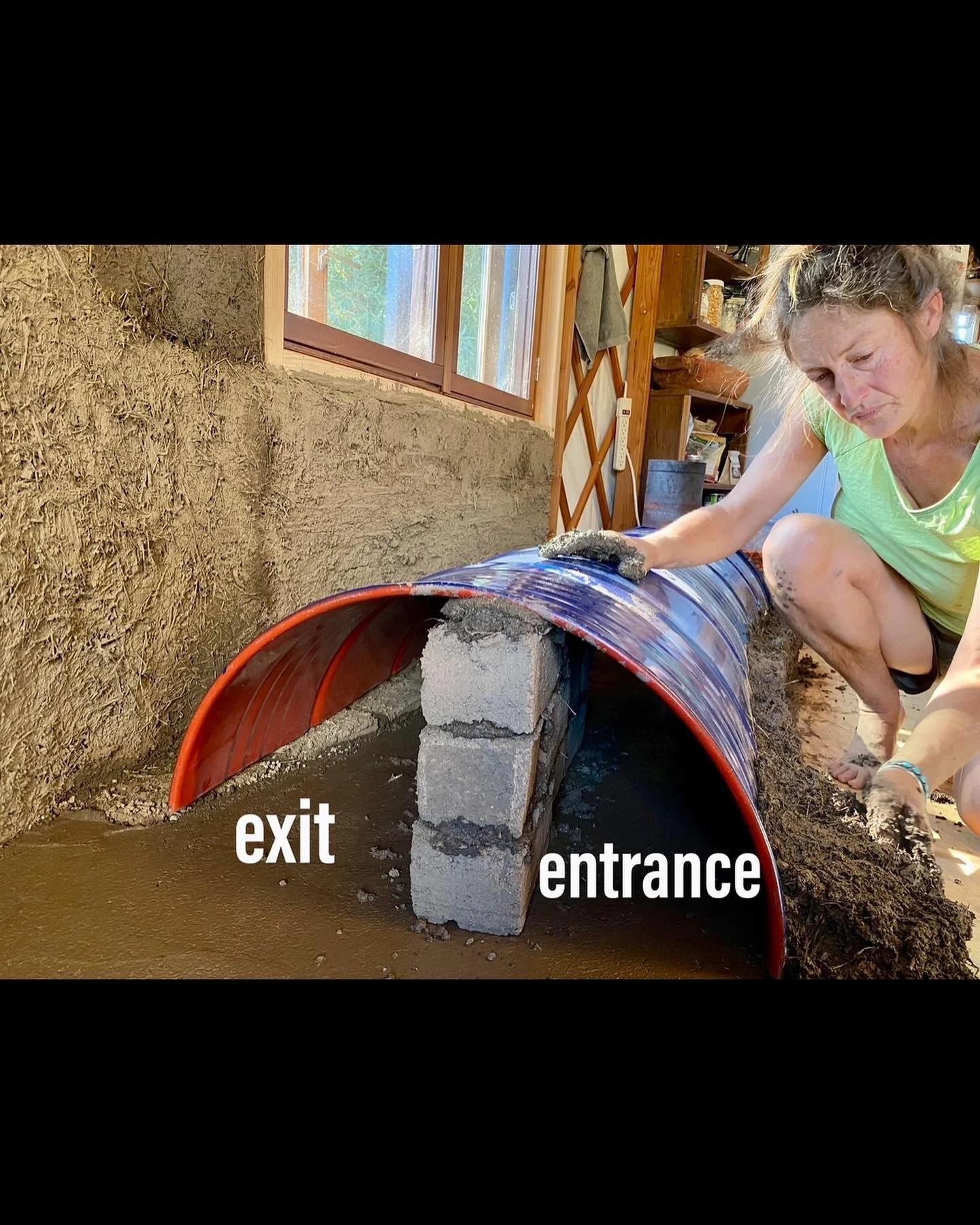

This image shows the path of the flue gasses inside the bench.
